Pan Cleaning

Dry Bun Pan Cleaner

BM100303 / BM100305 / BM100307 / BM100309

LeMatic's Dry Bun Pan Cleaner uses two-stage brushing and dual-action air/vacuum to remove debris from bun pans inline at up to 100 FPM — no water, no chemicals, and no compressed-air cylinder lines. The gear-motor power lift eliminates the most common failure point on traditional pan cleaners.

100
FPM Max Speed
2-Stage
Brush Action
4
Width Models

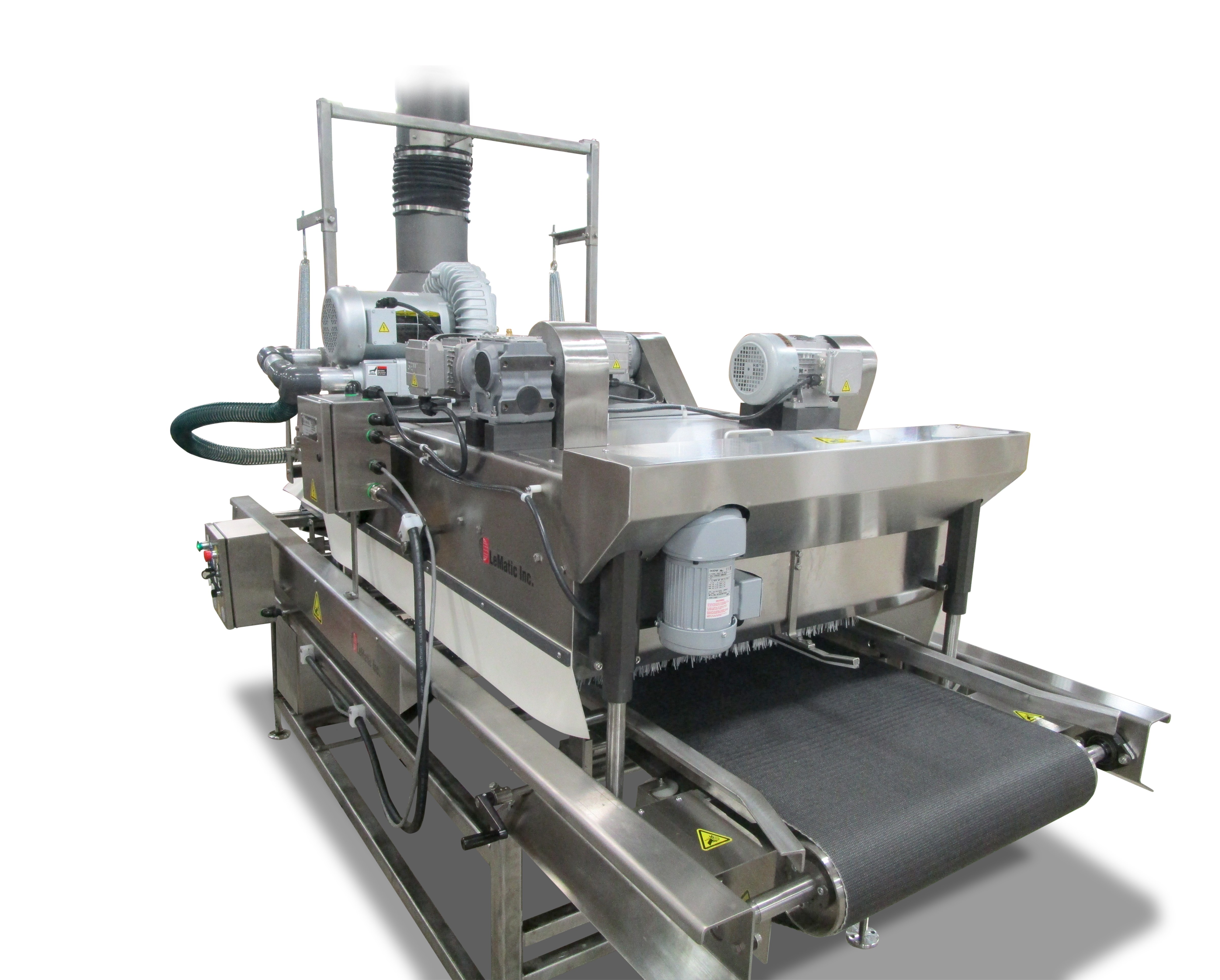

LeMatic Dry Bun Pan Cleaner machine with conveyor and vacuum system
How It Works

Built for high-production bakery lines

Two-Stage Brushing Action

Aggressively loosens debris from the top and sides of bun pans as they pass through the first stage, dislodging even baked-on residue.

Dual-Action Air / Vacuum Head

A counter-balanced air and vacuum head removes all dislodged debris. Includes a regenerative blower and debris collection system.

Gear Motor Power Lift

Eliminates compressed-air lines and cylinder replacement — reducing maintenance costs and downtime significantly over the life of the machine.

Flexible Conveyor Integration

Mounts directly on your existing conveyor. Optional LeMatic floor-standing conveyor available in level or inclined configurations.

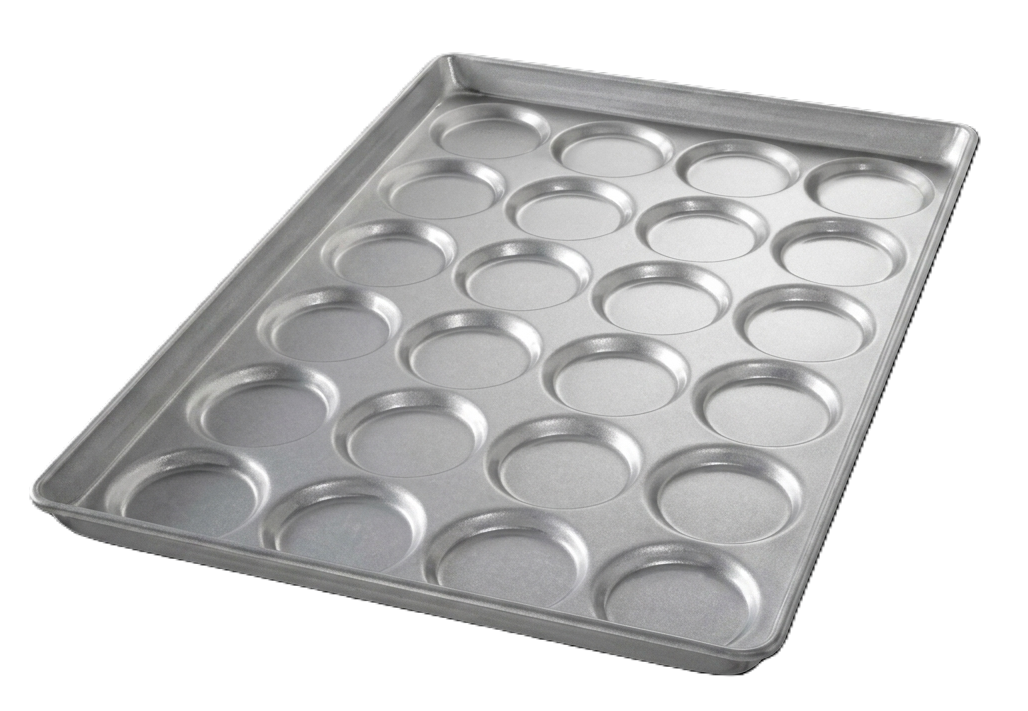

Aluminum 24-pocket hamburger bun pan tray

Included Vacuum System

The vacuum system is included with the Dry Bun Pan Cleaner and configured to your facility's requirements. It features a two-stage filter, a 10 HP motor, a bag shaker, metal collection drums, and rigid ductwork routed to within 600mm of the pick-up area.

Stage 1: Large particle filter
Stage 2: Small particle filter
10 HP regenerative blower motor
Bag shaker for debris removal
Metal collection drums
Ductwork to within 600mm of pick-up area

Vacuum system configured to customer requirements.

Technical Data

Specifications

Maximum Conveyor Speed100 ft/min (30.5 m/min)
Electrical ControlsAll Standard Voltages
Control Voltage24VDC (other voltages available)
Air Requirements1" NPT air line with filter and regulator, 18 CFM @ 90 psi
Connected Load15 to 19 KVA
Models AvailableBM100303, BM100305, BM100307, BM100309

Ready to clean up your line?

Contact LeMatic to match the right model to your conveyor width and production requirements.
