±0.3N
Film tension accuracy
Across full roll diameter
99.1%
Splice success rate
Zero-speed & on-the-fly
600mm
Max film width
Single spindle
< 2 min
Roll changeover
Core chuck release
Constant tension. Zero film breaks.
Four engineering decisions that eliminate the most common causes of film breaks and seal inconsistency.
±0.3N
Tension across full roll

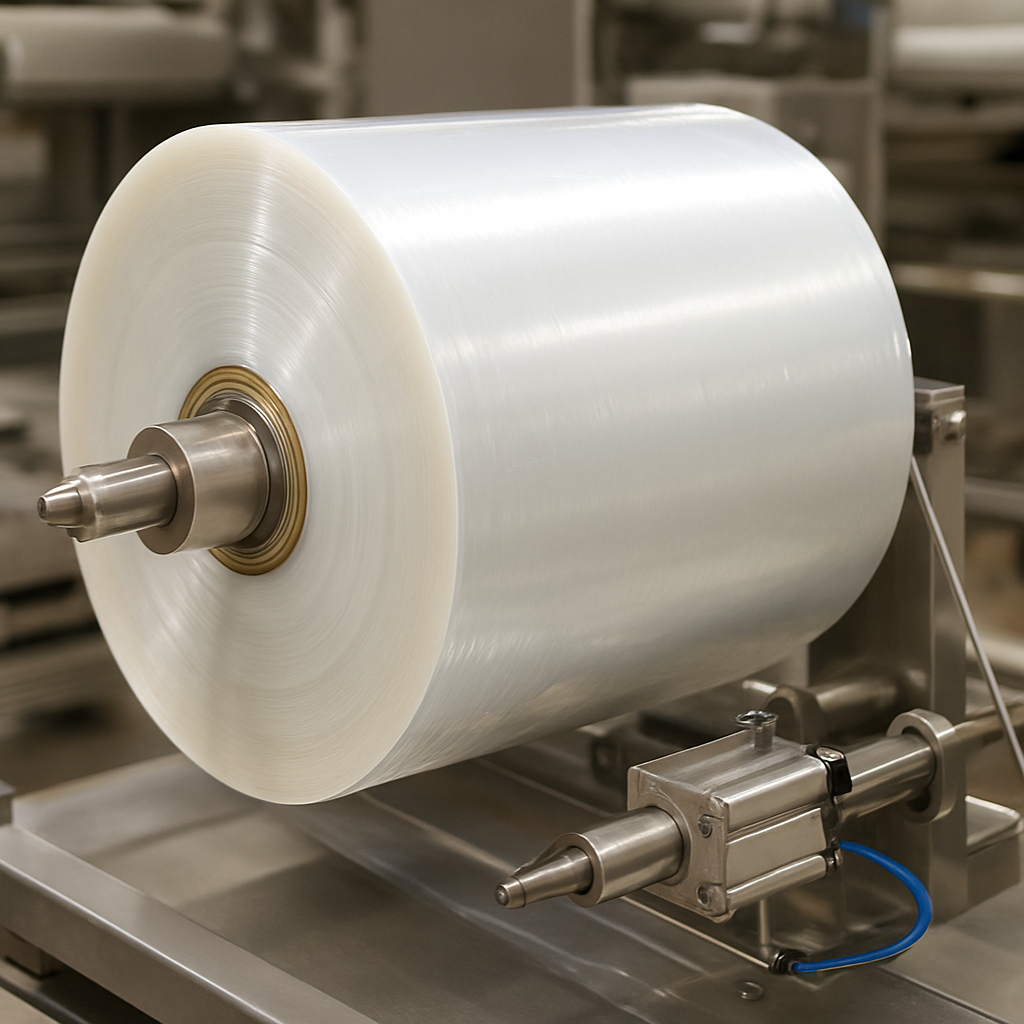

Constant Film Tension
A pneumatic brake applies proportional pressure as the roll diameter decreases — so film tension stays within ±0.3N from a full 600mm diameter roll down to the core. No dancer arm hunting, no film breaks at high speed.
30%
Less film breakage
Powered Unwind with Regenerative Braking
The driven unwind motor decelerates into the film rather than against it. Energy recovered during deceleration feeds back into the control system — reducing heat build-up and extending both motor and film life.
0
Downtime per splice
On-the-Fly Splice Capability
With dual spindle configuration, a new roll pre-arms on the second spindle while the active roll runs. The splicer initiates at a user-defined diameter threshold — line speed never drops, bags never stop.
30 sec
Roll swap time
Tool-Free Core Chuck Release
Quarter-turn pneumatic core chucks release and re-lock in under 30 seconds without tools. Roll changes no longer require a maintenance call — any operator can swap a roll mid-shift at line speed.
Equipment this upgrade works on.
LeMatic Horizontal Baggers
LX-120 / LX-350 / LX-470
- Direct bolt-on mount
- HMI tension preset sync
- Dual spindle support
- No adapter required
Line Compatibility
Works with the packaging line you already run.
50+
Supported packaging lines
<2hr
Typical install window
Machine Compatibility
Works with the packaging line you already own.
Compliance & Certification
